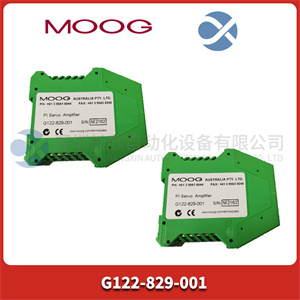

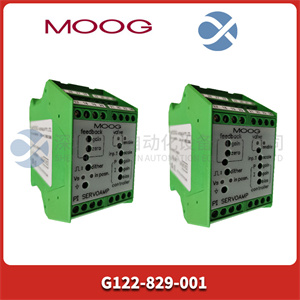

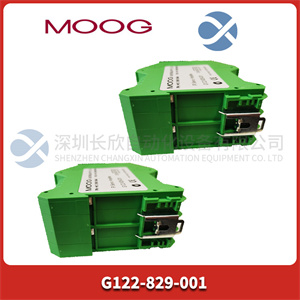

G122-829-001 MOOG

Description

G122-829-001 MOOG

MOOG G122-829-001是一款伺服放大器，专为各种工业应用而设计。它采用模拟电子设备，能够接受三个输入信号（一个单端和两个差分），然后将它们相加以产生误差信号，该信号按比例放大并整合。比例和积分信号一起切换并输出为驱动伺服阀的电流或电压。该放大器具有内部选择开关，可用于启用比例、积分或两者都要选择，使得一个放大器可以用于许多不同的应用。此外，它还配备有前面板装饰罐、LED指示灯和测试点，使得设置变得快速且易于操作，同时也便于故障排查。

规格：

• 输入信号数量：三个（一个单端，两个差分）
• 输出类型：电流或电压
• 内部选择开关功能：比例、积分或两者都要
• 安装要求：需要+ 24V直流电源，应安装在垂直后表面上的工业钢外壳中
• 尺寸和重量：具体规格可能因制造商而异



作用特征：

• 灵活性：通过内部选择开关，可以调整放大器的功能，以满足不同的应用需求。
• 稳定性：设计用于长时间稳定运行，适用于各种工业环境。
• 易于设置和维护：前面板装饰罐、LED指示灯和测试点使得设置变得快速且易于操作，同时也便于故障排查。

应用领域：
MOOG G122-829-001伺服放大器广泛应用于各种工业领域，包括塑料工业、金属成型、纺织工业、发电、仿真等。它主要用于控制伺服阀和伺服比例阀，以及与其他工业电子设备配合使用，以实现精确的运动控制和数据采集。由于其高度的灵活性和稳定性，它已成为工业自动化领域中不可或缺的一部分

The MOOG G122-829-001 is a servo amplifier specifically designed for various industrial applications. It employs analog electronic devices to accept three input signals (one single-ended and two differential), combines them to generate an error signal, which is then proportionally amplified and integrated. The proportional and integral signals are switched together and output as a current or voltage to drive servo valves. The amplifier features an internal selection switch that enables the choice of proportion, integration, or both, making one amplifier suitable for many different applications. Additionally, it is equipped with a front panel finish, LED indicators, and test points for quick and easy setup, as well as troubleshooting convenience.

Specifications:

• Number of Input Signals: Three (one single-ended, two differential)
• Output Type: Current or voltage
• Internal Selection Switch Functionality: Proportion, integration, or both
• Installation Requirements:Requires +24V DC power supply, should be installed in an industrial steel enclosure on the vertical rear surface
• Dimensions and Weight: Specific specifications may vary by manufacturer

Functional Characteristics:

• Flexibility: The internal selection switch allows for adjustment of the amplifier’s functionality to meet different application requirements.
• Stability: Designed for long-term reliable operation in various industrial environments.
• Easy Setup and Maintenance: The front panel finish, LED indicators, and test points facilitate quick and easy setup, as well as troubleshooting convenience.

Application Fields:
The MOOG G122-829-001 servo amplifier is widely used in various industrial sectors, including plastic industry, metal forming, textile industry, power generation, simulation, and more. It is primarily used to control servo valves and servo proportional valves, as well as to interface with other industrial electronic equipment for precise motion control and data acquisition. Due to its high flexibility and stability, it has become an indispensable part of the industrial automation landscape
