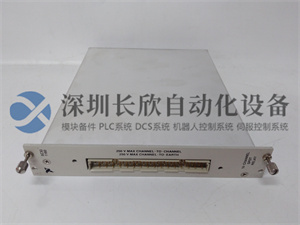

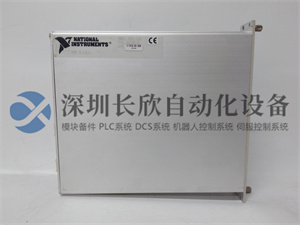

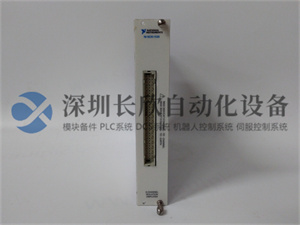

SCXI-1160 NI

Description

SCXI-1160 NI

SCXI-1160是一个通用的开关模块，具备16个独立的SPDT C型机电锁存继电器。该模块具有极低的导通电阻和热偏移，其继电器能够切换、路由和控制中级信号。该模块的最大开关速率为每秒50次操作，完全可通过软件编程实现。SCXI-1160可以与多种NI的板卡配合使用，如MIO-16板、Lab-NB、Lab-PC、Lab-PC+、Lab-LC、PC-LPM-16板，以及DIO-24、DIO-32F和DIO-96板。当与SCXI机箱一起使用时，机箱可以在多种类型的应用中用作控制器或交换机，如工业过程监控、生产测试和实验室测试。

规格：

• 继电器数量：16个
• 继电器类型：SPDT C型机电锁存
• 最大开关速率：每秒50次
• 导通电阻：极低
• 热偏移：低
• 可配合使用的板卡：MIO-16、Lab-NB、Lab-PC、Lab-PC+、Lab-LC、PC-LPM-16、DIO-24、DIO-32F、DIO-96
• 尺寸：1.2 x 6.8 x 8.0 英寸

作用特征：

• 16个独立的SPDT C型机电锁存继电器
• 极低的导通电阻和热偏移
• 最大开关速率为每秒50次，可通过软件编程
• 可与多种NI板卡配合使用
• 可用于工业过程监控、生产测试和实验室测试等应用场景

应用领域：

• 工业过程监控
• 生产测试
• 实验室测试
• 自动化控制系统
• 信号路由和切换

The SCXI-1160 is a general-purpose switch module featuring 16 independent SPDT C-type electromechanical latching relays. This module exhibits extremely low on-state resistance and thermal shift, enabling its relays to switch, route, and control intermediate-level signals. With a maximum switching rate of 50 operations per second, the SCXI-1160 can be fully programmed through software. The module is compatible with various NI boards, including MIO-16, Lab-NB, Lab-PC, Lab-PC+, Lab-LC, PC-LPM-16, as well as DIO-24, DIO-32F, and DIO-96. When used in conjunction with an SCXI chassis, the chassis can serve as a controller or switch in various types of applications, such as industrial process monitoring, production testing, and laboratory testing.

Specifications：

• Number of Relays: 16
• Relay Type: SPDT C-type Electromechanical Latching
• Maximum Switching Rate: 50 operations per second
• On-state Resistance: Extremely low
• Thermal Shift: Low
• Compatible Boards: MIO-16, Lab-NB, Lab-PC, Lab-PC+, Lab-LC, PC-LPM-16, DIO-24, DIO-32F, DIO-96
• Dimensions: 1.2 x 6.8 x 8.0 inches

Functional Features：

• 16 independent SPDT C-type electromechanical latching relays
• Extremely low on-state resistance and thermal shift
• Maximum switching rate of 50 operations per second, programmable via software
• Compatibility with various NI boards
• Suitable for industrial process monitoring, production testing, laboratory testing, and other application scenarios

Application Fields：

• Industrial process monitoring
• Production testing
• Laboratory testing
• Automated control systems
• Signal routing and switching
