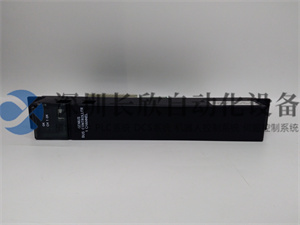

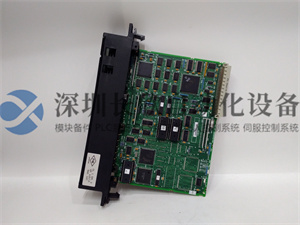

GE IC697BEM731Z

Description

GE IC697BEM731Z

GE IC697BEM731Z是Genius总线控制器模块，是GE Fanuc系列90-70系列可编程逻辑控制器(PLC)的一部分。该模块主要用于连接多达三十(30)个设备，并通过在同一总线上的所有已配置设备之间传递令牌来传输数据。

规格：

• 通道数量：1个，用于与位于同一总线上的设备连接。
• 手持监视器(HHM)端口：1个，用于使用MS DOS或Windows编程软件配置器功能将配置下载到模块。
• 总线地址：默认配置为153.6 Kbaud标准和总线地址31，但可以通过配置软件进行修改。
• 通信距离：根据配置的不同波特率，通信总线的最大允许距离有所不同，范围从2000英尺到7500英尺。

作用特征：

• 数据传输：通过令牌传递机制在同一总线上的设备之间传输数据。
• 配置灵活性：可以通过软件配置多个参数，如波特率和总线地址。
• 监视与控制：通过手持监视器端口进行模块的监视和配置。

应用领域：

GE IC697BEM731Z广泛应用于数控机械、冶金、石油天然气、造纸印刷、纺织印染、机械、电子制造、汽车制造、烟草、塑胶机械、发电厂、水利处理/环保、市政工程、钢厂、水泥厂、机器人、轨道交通等领域

The GE IC697BEM731Z is a Genius Bus Controller Module, part of the GE Fanuc Series 90-70 Programmable Logic Controllers (PLC). This module is primarily designed to connect up to thirty (30) devices and transmit data by passing tokens among all configured devices on the same bus

Specifications:

• Number of Channels: 1, for connecting devices located on the same bus.
• Handheld Monitor (HHM) Port: 1, for downloading configurations to the module using MS DOS or Windows programming software configuration functions.
• Bus Address: Defaults to 153.6 Kbaud standard and bus address 31, but can be modified through configuration software.
• Communication Distance: The maximum allowable distance for the communication bus varies based on the configured baud rate, ranging from 2000 feet to 7500 feet.

Functional Characteristics:

• Data Transmission: Transmits data among devices on the same bus through a token-passing mechanism.
• Configuration Flexibility: Multiple parameters, such as baud rate and bus address, can be configured through software.
• Monitoring and Control: Allows for monitoring and configuration of the module through the handheld monitor port.

Application Fields:

The GE IC697BEM731Z is widely used in various industries such as CNC machinery, metallurgy, oil and gas, paper printing, textile printing and dyeing, machinery, electronics manufacturing, automobile manufacturing, tobacco, plastic machinery, power plants, water treatment/environmental protection, municipal engineering, steel mills, cement plants, robotics, and rail transportation
