1336-WB110 A-B

Description

1336-WB110 A-B

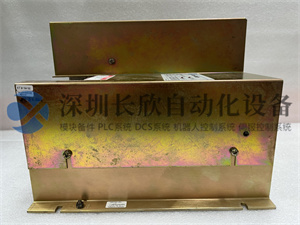

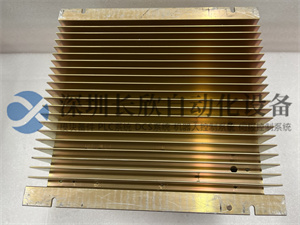

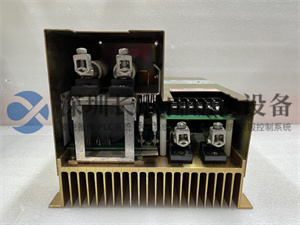

1336-WB110 A-B是一款由Allen-Bradley（罗克韦尔自动化）制造的动态制动斩波器模块。它是一款高性能的驱动门电源板，专为工业自动化和控制系统设计，旨在提供稳定可靠的电源支持给驱动器及其控制电路，以便驱动相关的电动设备

规格：
1336-WB110 A-B的工作电压范围为380-480V AC，工作电流为110A。它采用了200A、700V AC Ferraz Shawmut熔断器，并带有SCR过压撬棒电路，为系统提供可靠的过压保护

作用特征：

• 电源供应：为驱动器及其控制电路提供所需的电源。
• 保护功能：具备过流、过压、过载等保护功能，确保驱动器和相关设备的安全运行。
• 稳定性与可靠性：设计用于提供稳定且可靠的电源，确保驱动器系统的稳定性和可靠性。
• 模块化设计：便于安装、部署、维护和更换，提高系统的维护便捷性。
• 能量转换：利用绝缘栅双极晶体管(IGBT)斩波器晶体管电压控制，有效调节直流母线电压，实现能量的高效转换和利用。

应用领域：
1336-WB110 A-B广泛应用于工业自动化和控制系统，特别是在需要精确和稳定电源支持的场合，如电机驱动、传送带、风机、泵类等设备的控制系统中

The 1336-WB110 A-B is a dynamic braking chopper module manufactured by Allen-Bradley (Rockwell Automation). It is a high-performance drive door power board specifically designed for industrial automation and control systems. Its main function is to provide stable and reliable power support to the driver and its control circuit to drive related electric equipment

Specifications:
The 1336-WB110 A-B operates within a voltage range of 380-480V AC and has a working current of 110A. It utilizes a 200A, 700V AC Ferraz Shawmut fuse and incorporates an SCR overvoltage crowbar circuit, providing reliable overvoltage protection for the system

Functional Characteristics:

• Power Supply: Supplies the required power to the driver and its control circuit.
• Protection Functions: Features overcurrent, overvoltage, and overload protection to ensure the safe operation of the driver and related equipment.
• Stability and Reliability: Designed to provide stable and reliable power, ensuring the stability and reliability of the drive system.
• Modular Design: Facilitates easy installation, deployment, maintenance, and replacement, enhancing the convenience of system maintenance.
• Energy Conversion: Utilizes insulated gate bipolar transistor (IGBT) chopper transistor voltage control to effectively regulate the DC bus voltage, enabling efficient energy conversion and utilization.

Application Fields:
The 1336-WB110 A-B is widely used in industrial automation and control systems, particularly in scenarios that require precise and stable power support, such as motor drives, conveyor belts, fans, pumps, and other equipment control systems
