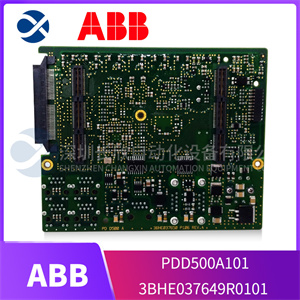

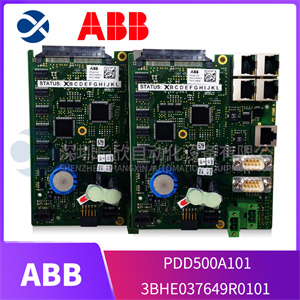

ABB 3BHE037649R0101 PDD500A101

描述

ABB 3BHE037649R0101 PDD500A101

ABB 3BHE037649R0101 PDD500A101该通讯模块是ABB公司推出的一款用于工业自动化和控制系统的关键组件。它主要用于实现设备之间的数据交换和通信。

规格：

• 接口：1 x RS 485
• 控制方式：15个可编程功能键
• 显示屏：3.7英寸STN，分辨率为192×64像素
• 防护等级：前面板IP 65，后面板IP 20
• 尺寸：前面板174 x 102 mm (宽x 高)，后面板163.5 x 93.5 mm (宽x 高)，厚度31 mm

作用特征：

• 无需单独的电源，可以通过供应的连接电缆方便地连接到S7-200的PPI接口。
• 如果TD 400C和S7-200之间的距离大于2.5米，则可能需要使用交流适配器。
• 提供了PROFIBUS总线线路作为连接电缆的替代方案。
• 配置数据存储在S7-200的CPU中。
• 使用编程软件STEP 7-Micro/WIN V4 SP 6 (TD 400 Wizard)创建警报文本和配置参数。

应用领域：

• 工业自动化：广泛应用于制造业、过程控制和工厂自动化。
• 电力系统：用于监测和控制电力设备，提高电网的效率和稳定性。
• 过程控制：在化工、石油、制药等行业实现复杂的过程控制。
• 交通系统：可能用于交通信号控制、铁路系统和其他交通设备。
• 建筑自动化：用于控制和监测建筑自动化系统，如暖通空调、照明控制和安防系统。
• 水处理和制水：在水处理厂和制水厂中监测和控制水处理过程。

This communication module is a key component from ABB for industrial automation and control systems. It is primarily used to enable data exchange and communication between devices.

Specifications：

• Interface: 1 x RS 485
• Control Method: 15 Programmable Function Keys
• Display: 3.7-inch STN with a resolution of 192×64 pixels
• Protection Rating: Front Panel IP 65, Rear Panel IP 20
• Dimensions: Front Panel 174 x 102 mm (Width x Height), Rear Panel 163.5 x 93.5 mm (Width x Height), Thickness 31 mm

Functional Features：

• No separate power supply required, can be easily connected to the PPI interface of S7-200 using the supplied connection cable.
• If the distance between TD 400C and S7-200 is greater than 2.5 meters, an AC adapter may be required.
• PROFIBUS bus line is provided as an alternative to the connection cable.
• Configuration data is stored in the S7-200’s CPU.
• Uses programming software STEP 7-Micro/WIN V4 SP 6 (TD 400 Wizard) to create alarm texts and configuration parameters.

Application Fields：

• Industrial Automation: Widely used in manufacturing, process control, and factory automation.
• Power Systems: For monitoring and controlling power equipment to improve grid efficiency and stability.
• Process Control: Enables complex process control in industries such as chemicals, oil, and pharmaceuticals.
• Transportation Systems: May be used in traffic signal control, railway systems, and other transportation equipment.
• Building Automation: Used for controlling and monitoring building automation systems such as HVAC, lighting control, and security systems.
• Water Treatment and Production: For monitoring and controlling water treatment processes in water treatment plants and water production facilities.
